BotBuild Notes uses AI-assisted tools for drafting, coding and debugging, but the examples on this page come from practical experiments: server commands, deployment bundles, historical market-data checks, chart work, logs, state databases and small-scale execution tests.
Editorial disclosure: AI is used as a development and writing assistant on this project. The screenshots below are from real working sessions and have been cropped or redacted to remove local usernames, account details and other unnecessary private information. They are shown to document the engineering process — not to prove profitability.
These are not stock images. They are selected from the same bot-building work that produced the guides on this site.
A remote review bundle is created, transferred and downloaded for inspection. This is the kind of routine work behind a reliable VPS deployment: collect evidence first, then change code.
The data collection job was split into date windows and the returned row count was checked for each period. Missing or uneven data can make a backtest look better or worse than reality.

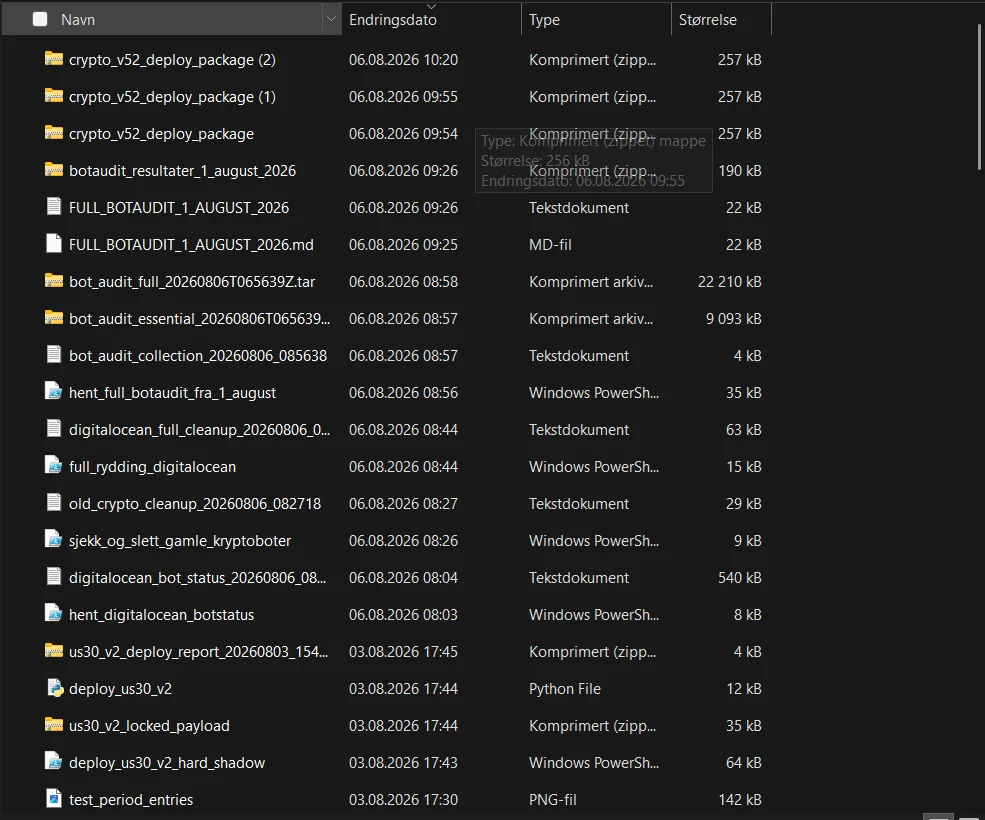

Bot work quickly creates many moving parts: deploy packages, audit outputs, PowerShell helpers, server cleanup records and status captures. Keeping them organized makes regression debugging possible.
Indicators and levels were inspected manually before translating ideas into deterministic rules. A chart concept that looks obvious to a person still needs exact entry, exit and invalidation conditions before code can use it.

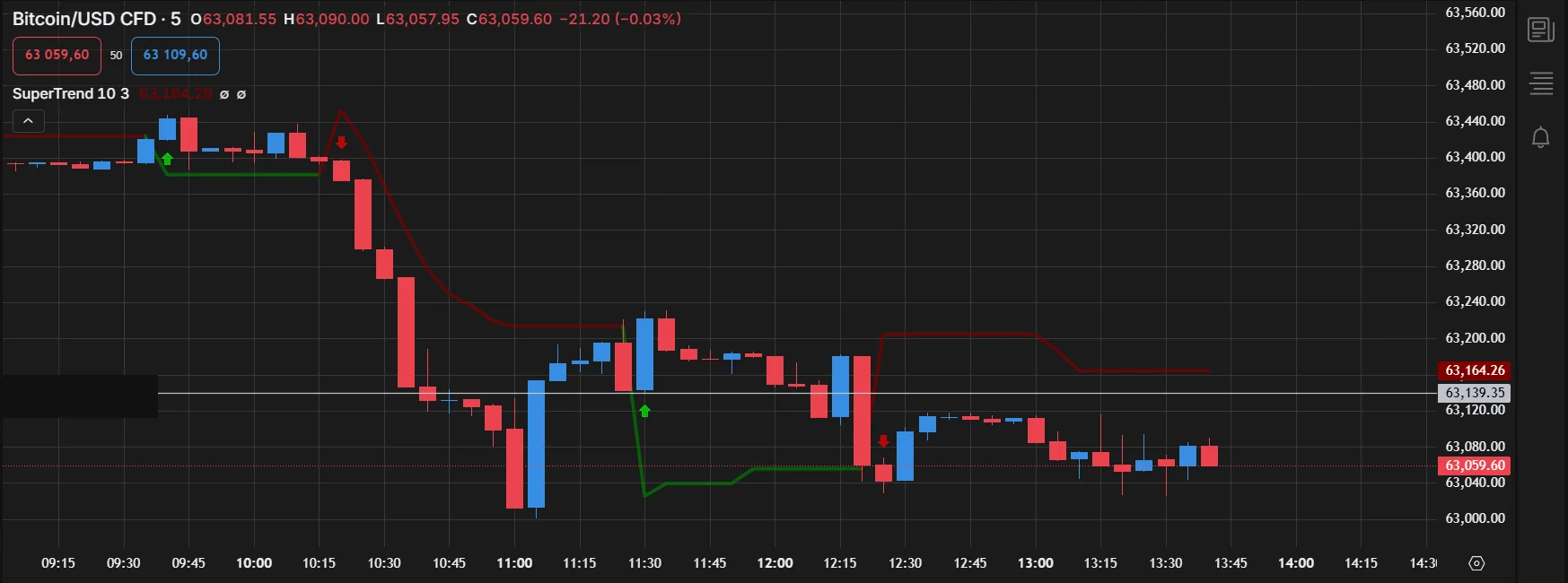

Small-size tests were used to observe order handling, broker state and execution behavior. The engineering questions start after the signal: duplicate protection, order confirmation, stops, reconnects and state recovery.
Small BTC, ETH and SOL positions were checked directly in the broker interface, including entry, last price, stop loss, take profit and current P&L. This is the final state a bot should verify instead of assuming an API request succeeded.
A useful build log should show more than the screenshots that look successful. These examples document compilation errors, weak backtests, repeated EA versions and infrastructure failures encountered during development.

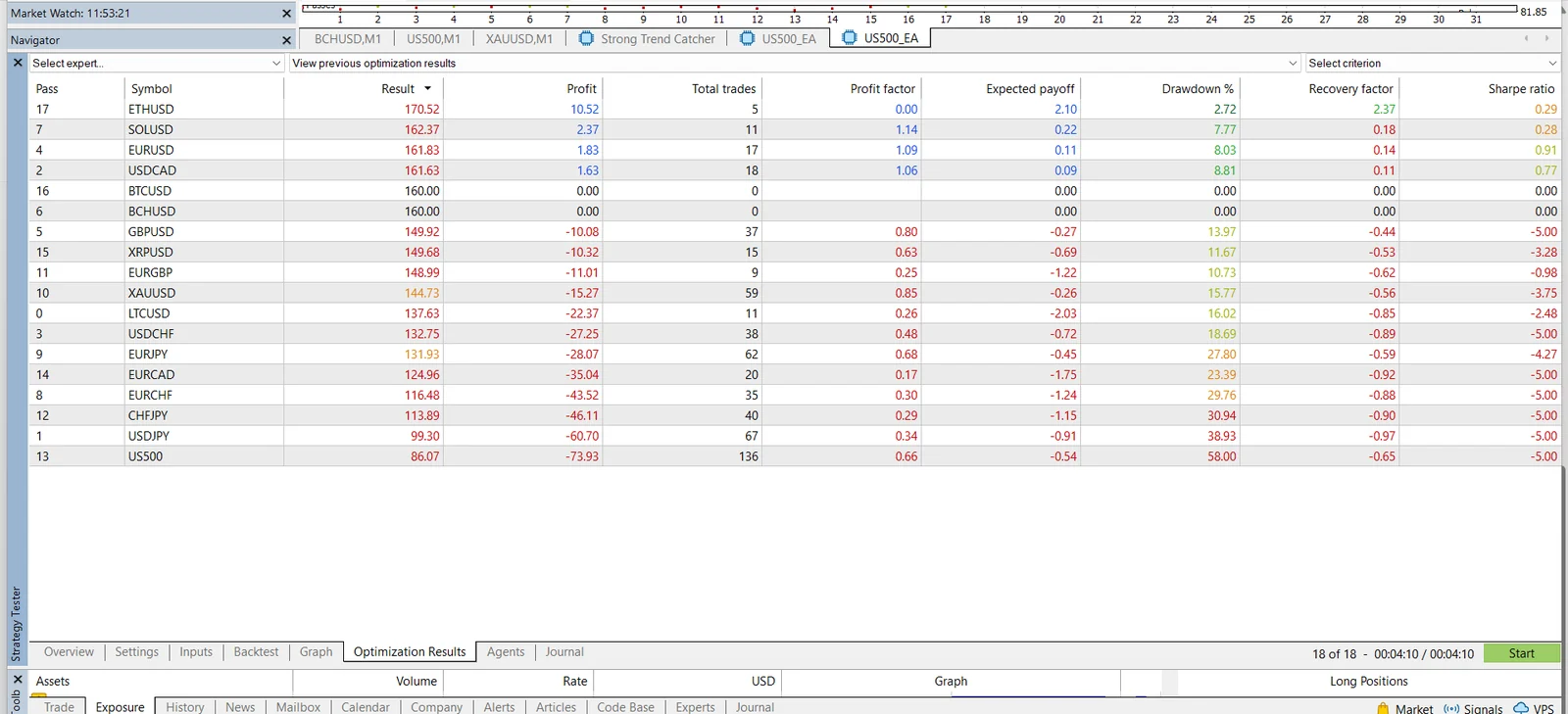

The same Expert Advisor behaved very differently across symbols. Several rows were negative, some produced no trades, and drawdown varied sharply. That is exactly why one attractive result should not be treated as proof that a strategy generalizes.

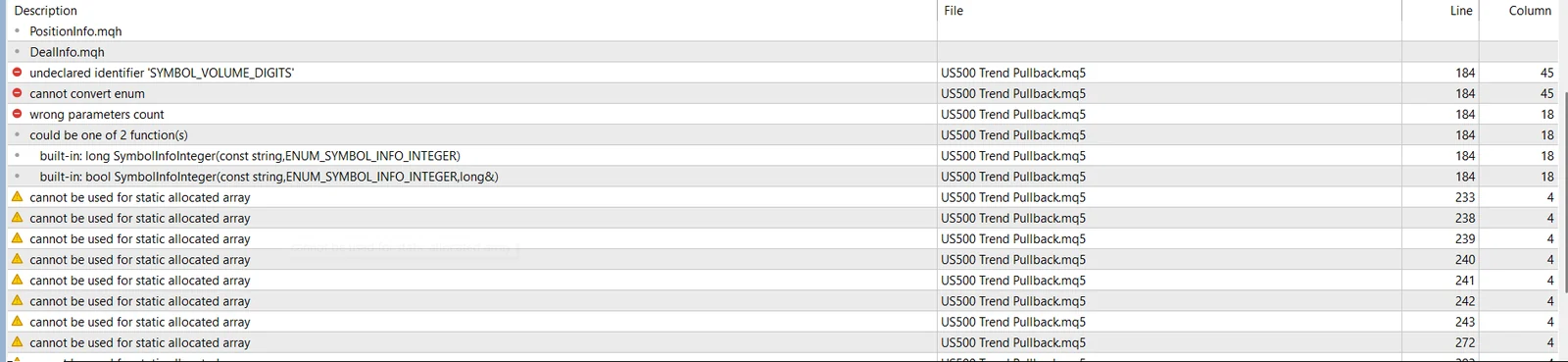

This build hit an undeclared identifier, enum conversion and parameter-count errors, plus array warnings. AI can help explain those messages, but the code still has to compile cleanly and be tested in MetaTrader.

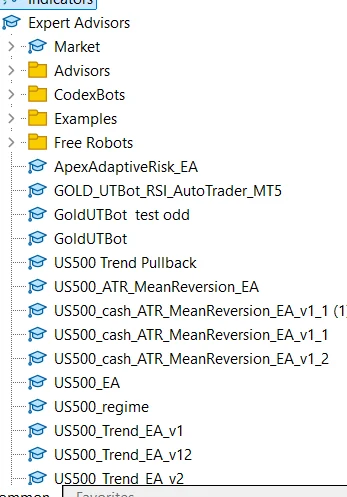

The Expert Advisors list shows repeated versions for US500, Gold and other experiments. Versioning matters because a change that fixes one issue can introduce another.

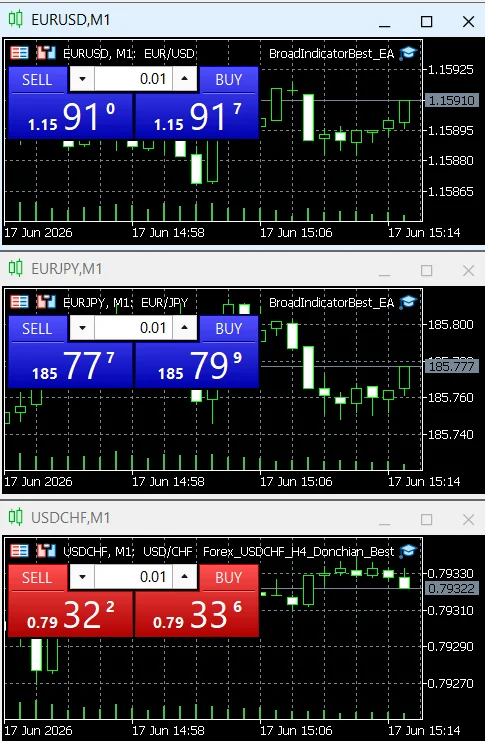

Several charts were used to observe how different Expert Advisors behaved on different currency pairs. Small sizing makes debugging execution logic less expensive than jumping straight to meaningful exposure.

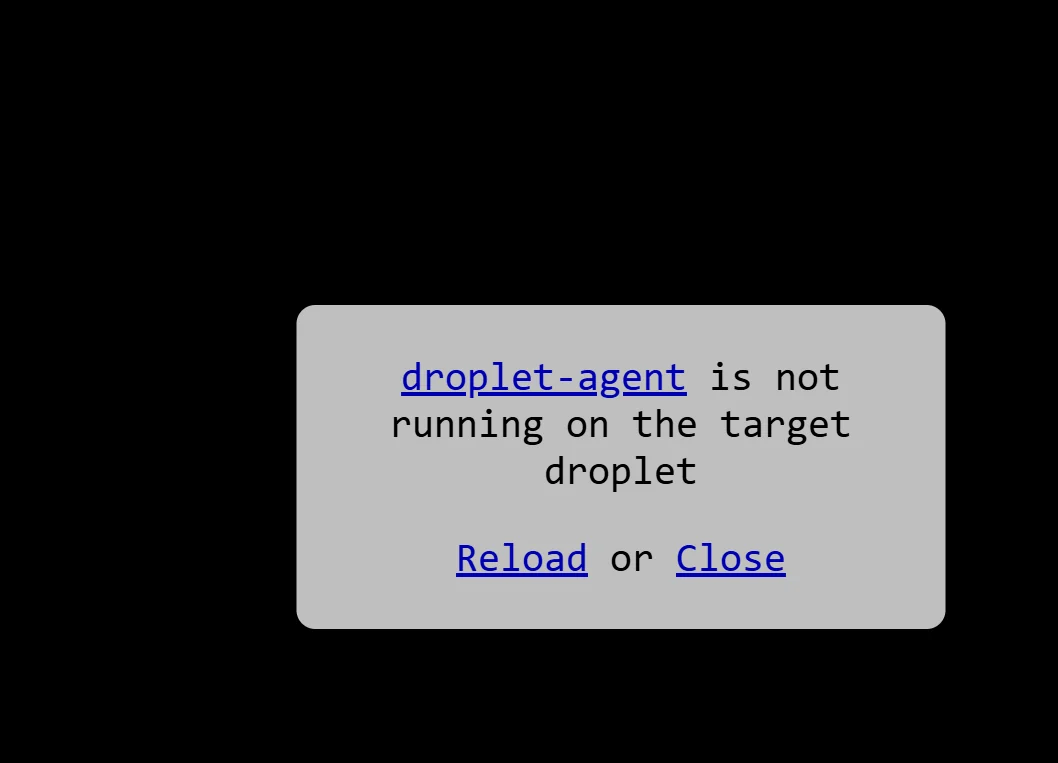

At one point the DigitalOcean console reported that the droplet agent was not running. A trading service can be perfectly designed and still become unreachable because the surrounding infrastructure has a problem.
Authentication failures can come from expired sessions, wrong credentials, environment mismatches or incorrect request handling. The correct response is to diagnose the cause — not loop retries indefinitely.
Broker-side validation, minimum size, market state and request/confirmation differences had to be handled separately from strategy logic.
Data gaps, spread, slippage, stale prices and different live timing changed how a strategy behaved outside a historical test.
systemd services, logs, health checks, state databases, safe restarts and audit scripts became as important as indicator logic.
Specific requirements, complete files, logs and expected behavior produced better results than asking a model to “make a profitable bot.”
